Products
Chimney kits for saunas
Complete chimney kits for wood-burning stoves in mobile, modular and permanent saunas. Quick to install and compliant with EN 1856-1 and EN 1856-2.
Why choose a ready-made kit?
All parts are designed to fit together, so installation is quick and the system is airtight and safe.
All in one
Every part from the rain cap to the ceiling plate, sealing element and silicone.
Ø 115 / 200 mm
Inner pipe in 304L steel, outer pipe in 430 steel, with non-combustible mineral wool in between.
Up to 450 °C
Designed for wood-burning sauna stoves.
Steel or black
The outer casing is also available painted black with heat-resistant paint.
Kit diagrams
Click a diagram to enlarge it or download the PDF
1100 mm kit
Total kit height: 1100 mm.
- Rain cap
- Top end piece
- Twin-wall pipe section (1000 mm)
- Bottom end piece
- Single-wall pipe sections – 2 pcs
- Sealing element – square or oval
- Insulation layer
- Clamp for the rubber element
- Decorative plate – two-piece or one-piece
- Silicone tube with screws

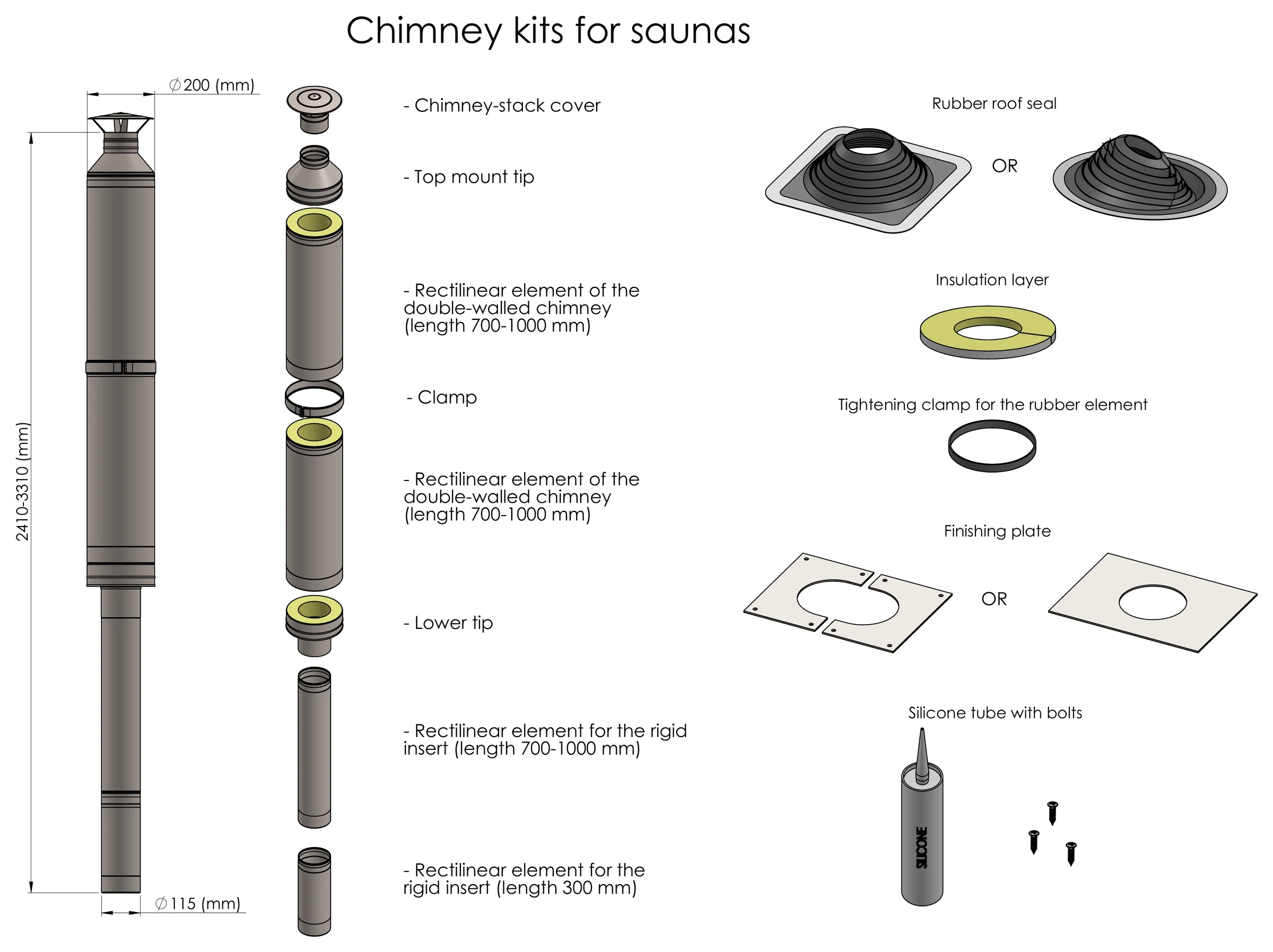

2410–3310 mm kit
Total height 2410–3310 mm, in stainless steel or black.
- Rain cap
- Top end piece
- Twin-wall pipe sections (700–1000 mm) – 2 pcs
- Clamp
- Bottom end piece
- Single-wall pipe section (700–1000 mm)
- Single-wall pipe section (300 mm)
- Sealing element – square or oval
- Insulation layer
- Clamp for the rubber element
- Decorative plate – two-piece or one-piece
- Silicone tube with screws
Kit with tee and elbow
Chimney on an external wall, connected through the wall with a 90° elbow.
- Rain cap (two options)
- Top end piece
- Twin-wall pipe section (500 mm)
- Wall bracket
- Twin-wall pipe section (1000 mm)
- Twin-wall 90° tee
- Bottom end piece
- Single-wall pipe section (300–1000 mm)
- 90° elbow
- Clamping connector
- Single-wall pipe section (300 mm)
- Insulated condensate collector
- Two-piece decorative wall plate
Kit with tee
Chimney on an external wall, connected directly through the wall.
- Rain cap (two options)
- Top end piece
- Twin-wall pipe sections (1000 mm) – 2 pcs
- Wall bracket
- Twin-wall 90° tee
- Bottom end piece
- Insulated condensate collector
- Two-piece decorative wall plate
Water heating tanks
The tank heats water using the warmth of a wood-burning stove. Suitable for mobile and permanent saunas.
- 130 l or 40 l
Two capacities to suit the size of your sauna and your needs.
- 2Stainless steel 1.4301
Corrosion-resistant and long-lasting.
- 3Sealed construction
Built for high temperatures and humidity.
- 4PDF diagram
How to order
- 1Get in touch
Call or write to us. Tell us your stove model, ceiling height and roof type.
- 2We select the system
We choose the parts you need and prepare a quote.
- 3We manufacture
Your order is completed within 5 working days.
- 4You receive your order
We agree with you on how and when you will receive it.
